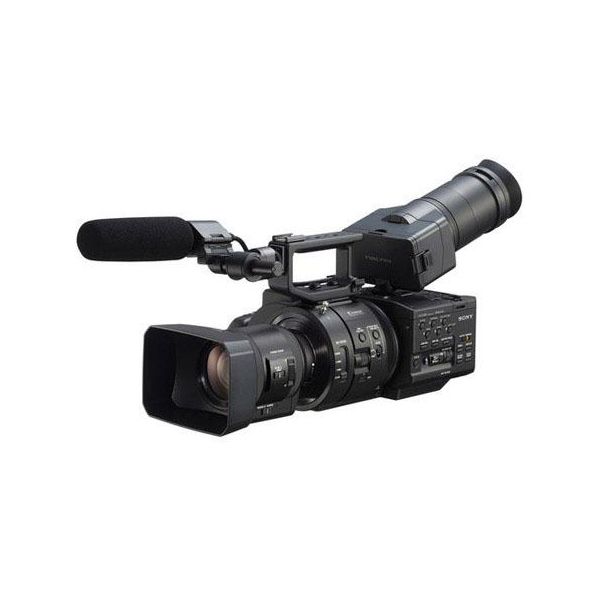

The Sony NEX-FS700RH 4K Sensor High Speed NXCAM Super35 Camcorder with 18-200mm Power Zoom Lens enables 4K/2K 12-bit RAW output, S-Log2 recording capabilities and features a Sony 18-200mm f/3.5-6.3 PZ OSS E-mount lens. The NEX-FS700R retains all the features of the NEX-FS700U, including the native 4K sensor, Super Slow Motion recording, built-in ND filters and CineGamma curves. 4K/2K RAW is recorded to the Sony AXS-R5 Recorder via the HXR-IFR5 Interface Unit, or to compatible third party recorders such as Convergent Design's Odyssey 7Q via the 3G/HD-SDI output. The HXR-IFR5 Interface Unit and external recorders are sold separately.
Product TypeCamcorder
- 4K
Lens Included18-200mm
OSS lens
Camcorder Sensor Resolution11.6
Mpix
Effective Video Resolution8.3
Mpix
Effective Photo Resolution8.4
Mpix
Widescreen Video CaptureYes
Camcorder Media TypeFlash
card
Optical Sensor TypeExmor
Super35 CMOS
Optical Sensor Size13.3
x 23.6mm
Optical Zoom11
x
Video Recording ModesLP,
FH, HQ, FX, PS
Image StabilizerOptical
(Steady Shot with Active Mode)
Auto FocusTTL
contrast detection
Digital Video FormatMPEG-2,
AVCHD
Audio Signal FormatDolby
Digital AC-3 (2 channel), Linear PCM
FeaturesSelectable
frame rates, SMPTE Time Code
AV InterfacesComposite
video/audio, component video, HDMI, 3G HD-SDI
Light SensitivityISO
320-64000
Min Illumination1.2
lux
White BalanceCustom,
automatic, presets
White Balance PresetsIndoor,
outdoor, 2300K - 15000K (100K steps)
Max Shutter Speed1/10000
sec
Min Shutter Speed1/3
sec
Gain Selection+12
dB, +18 dB, +3 dB, 0 dB, + 9 dB, +15 dB, +30 dB, +24 dB, +21 dB, +27 dB
Built-in ND Filters1/4,
1/64, 1/16
Type11
x zoom lens - 18 - 200 mm - f/3.5-6.3
Focal Length Equivalent to 35mm Camera30.6
- 340mm
Focus AdjustmentAutomatic,
manual
Min Focus Distance11.8
in
Max View Angle76
degrees
Zoom AdjustmentManual
Lens Construction12
groups / 17 elements
Filter Size67
mm
Lens System MountingSony
E-mount
FeaturesED
glass, aspherical lens
Additional FeaturesDolby
Digital AC-3 (2 channel) recording, 24p Cinema Mode, 25p Cinema Mode,
2K/4K RAW output, super slow motion recording
Type3.5"
LCD display
Resolution921,600
pixels
Display FeaturesRotating
Microphone Operation ModeMono
Connector Type2
x audio input 1 x component video output 1 x composite video output 1 x
audio output 2 x remote control 1 x USB 2.0 1 x HDMI output 1 x
headphones 1 x 3G HD-SDI output 1 x SDI input 1 x TC output 1 x remote
control
Memory Card SlotMemory
Stick PRO Duo card, SD card
Included AccessoriesHard
case, lens hood, battery charger, lens cap, AC power adapter, battery
adapter, USB cable, microphone, remote control, eyecup, audio / video
cable, component video cable, power adapter with battery charger, BNC
cable, USB to SATA adapler, monitor support arm, monitor / recorder, 2x
256GB SSD
Battery TypeSony
NP-F770
Details1
x Sony NP-F770 Li-ion rechargeable battery ( included ) 1 x Sony NP-F970
Lithium Iron Phosphate rechargeable battery - 6300 mAh ( included )
Memory Card SlotMemory
Stick PRO Duo card, SD card
Supported Memory CardsSD
Memory Card, SDXC Memory Card, Memory Stick PRO Duo Mark2, Memory Stick
PRO-HG Duo HX, SDHC Memory Card, Memory Stick PRO-HG Duo
Width5.7
in
Depth9.3
in
Height7
in
Weight3.7
lbs
Min Operating Temperature32
°F
Max Operating Temperature104
°F
