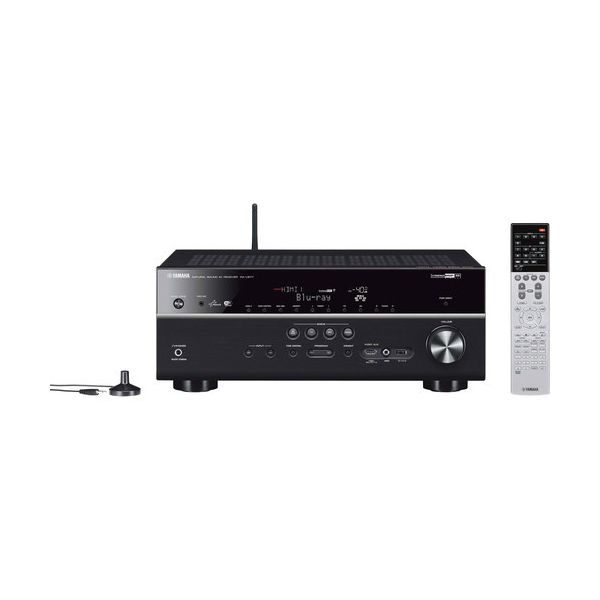

Yamaha RX-V677BL 7.2 Channel AV Receiver (Black)

SKU #: YARXV677BL | Manufacturer Part #: RXV677BL
Warranty Options:

Free Shipping!

Availability: Not in stock

Condition: New



This AV receiver's HDMI input/output supports 4K Ultra HD video image pass-through. It also can perform 4K Ultra HD upscaling to boost a lower resolution image to super high definition resolution. This ensures compatibility with the latest super high resolution video formats. The HDMI supports 4K Ultra HD 50/60p input for expanding super high definition resolution 4K Ultra HD broadcasting. MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multichannel audio from the phones is supported. The receiver also charges the connected phone. Play, stop and other basic operations can be controlled from the remote control.


Product TypeAV network receiver
Width17.1 in
Depth14.3 in
Height6.7 in
Weight22 lbs
Enclosure ColorBlack

Audio System

Sound Output ModeSurround Sound
Built-in DecodersDolby Pro Logic, Dolby Pro Logic II, DTS Neo:6, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, DTS 96/24, Dolby Digital, DTS decoder, Dolby Pro Logic IIx, DTS Express, Dolby Digital Plus, DSD decoder, Dolby TrueHD, DTS-HD Master Audio, DTS-HD High Resolution, Dolby Digital EX
3D TechnologyYes
FunctionsDigital player, AV network receiver, internet radio
Media Content SourceNetwork, USB-host
Supported Digital Audio StandardsWAV, AAC, MP3, FLAC, Apple Lossless
Audio D/A Converter24bit / 192kHz
Surround Sound EffectsVirtual CINEMA DSP, SILENT CINEMA DSP, CINEMA DSP 3D, Virtual Presence Speaker, Virtual CINEMA FRONT
Sound EffectsExtra Bass
Digital Sound Processor (DSP)Yes
DSP Preset Qty17
Surround System Class7.2 channel
Audio SpecificationsAmplifier - SNR - 110 dB
Input Impedance47 kOhm
Input Sensitivity200 mV
Amplifier Output Details105 Watt - 8 Ohm - at 1 kHz - THD 0.9% - 7 channel(s) ( surround ) 90 Watt - 8 Ohm - 20 - 20000 Hz - THD 0.09% - 7 channel(s) ( surround )
Bass ControlYes
Treble ControlYes
Built-in DisplayFluorescent
Additional FeaturesBi-Amplifying, source direct, auto power save, Yamaha Parametric Room Acoustic Optimizer (YPAO), dual-zone capability, compressed music enhancer, Audio Return Channel (ARC), Apple AirPlay support, iPod/iPhone/iPad ready, smartphone remote controlled, YPAO with R.S.C. (Reflected Sound Control), x.v.Color, Deep Color, MHL (Mobile High-Definition Link) support, HTC Connect support, YPAO Volume

Signal Processing Features

HDMI Pass-ThroughUp to 4K
Video Conversion/ScalingAnalog to HDMI up conversion, HDMI to HDMI scaling
Upscaling via HDMIUp to 4K


TypeAM/FM - digital
Tuning DisplayFluorescent display
Preset Station Qty40 preset stations

Network Player

Connectivity InterfacesIEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.11b/g

Network & Internet Multimedia

Internet Streaming ServicesPandora, Rhapsody, vTuner, Spotify, SiriusXM internet radio


Connector Type1 x headphones ( phone stereo 6.3 mm ) - front 1 x HDMI input ( 19 pin HDMI Type A ) - front 1 x composite video input ( RCA phono ) - front 1 x USB ( 4 pin USB Type A ) - front 5 x HDMI input ( 19 pin HDMI Type A ) - rear 1 x HDMI output ( 19 pin HDMI Type A ) - rear 2 x component video input ( RCA phono x 3 ) - rear 1 x component video output ( RCA phono x 3 ) - rear 2 x composite video input ( RCA phono ) - rear 2 x composite video/audio input ( RCA phono x 3 ) - rear 1 x composite video/audio output ( RCA phono x 3 ) - rear 1 x monitor output ( RCA phono ) - rear 2 x audio line-in ( RCA phono x 2 ) - rear 2 x SPDIF input ( TOSLINK ) - rear 2 x SPDIF input ( RCA phono ) - rear 1 x audio line-out (multi zone) ( RCA phono x 2 ) - rear 2 x subwoofer output ( RCA phono ) - rear 1 x Ethernet ( RJ-45 ) - rear 1 x DC power output ( 4 pin USB Type A ) - rear 7 x speakers output ( banana/spade x 2 ) - rear 2 x remote control - rear 1 x trigger - rear 2 x speakers output ( click-fit x 2 ) - rear


Included AccessoriesAM antenna, remote control, FM antenna, 2 AAA batteries, auto calibration microphone


Power Consumption Stand by / Sleep0.15 Watt
