Imaging
Lens Mount
Canon RF
Effective Sensor Resolution
Effective: 32.5 Megapixel (6960 x 4640)
Actual: 34.2 Megapixel
Image Sensor
35.9 x 23.9 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
Additional Modes: 1.6x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Sensor-Shift
Built-In ND Filter
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/8000 to 30 Seconds
Bulb/Time Mode
No
ISO/Gain Sensitivity
Native: 100 to 64,000 (50 to 102,400 Extended)
Video
Native: 100 to 25,600
Metering Method
Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes
Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range
-3 to 20 EV
White Balance
2000 to 10,000K
Presets: AWB, Auto, Cloudy, Color Temperature, Daylight, Flash, Fluorescent (White), Manual, Shade, Tungsten
Continuous Shooting
Up to 40 fps at Maximum Resolution
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
C-RAW, HEIF, JPEG
Bit Depth
12-Bit
Video Capture
Internal Recording
Raw 12-Bit
6960 x 4640 at 23.98/24.00/25/29.97 fps
6960 x 3672 at 23.98/24.00/25/29.97/50/59.94 fps
H.264/MP4/XF-AVC S 4:2:2/4:2:0 8/10-Bit
6912 x 4608 up to 29.97 fps
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94/100/120 fps
3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps
2048 x 1080 at 23.98/24.00/29.97/50/59.94/100/120/150/180 fps
1920 x 1080 at 23.98/29.97/50/59.94/100/120/150/180 fps
H.265/MP4/XF-HEVC S 4:2:2/4:2:0 10-Bit
6912 x 4608 up to 29.97 fps
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94/100/120 fps
3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps
2048 x 1080 at 23.98/24.00/29.97/50/59.94/100/120/150/180 fps
1920 x 1080 at 23.98/29.97/50/59.94/100/120/150/180 fps
Video Output
4:2:2/ProResRAW via HDMI
6960 x 3672 at 25/29.97 fps
Fast-/Slow-Motion Support
Yes
Gamma Curve
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Rec709
Recording Limit
No
IP Streaming
No
Built-In Microphone
Stereo
Audio Recording
Raw: 4-Channel 24-Bit LPCM Audio
2-Channel 16-Bit AAC Audio
Interface

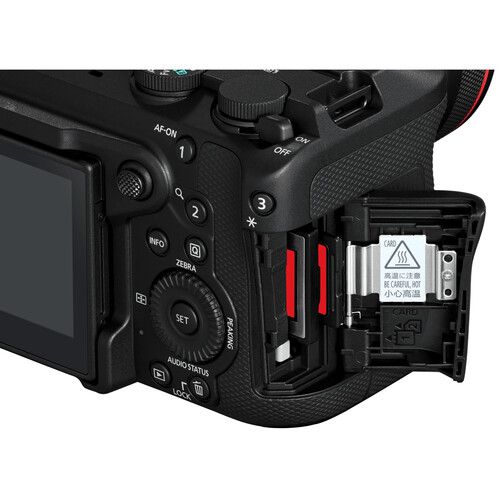

Media/Memory Card Slot
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II)
Internal Storage
No
Video I/O
1x HDMI Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O
1x USB-C Input
Other I/O
1x 2.5 mm Sub-Mini (Remote) Input
1x USB-C 3.1/3.2 Gen 2 (Data) Output (Shared with Power Input)
Wireless
Wi-Fi 5 (802.11ac) / Bluetooth 5.1
Mobile App Compatible
Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup
Global Positioning (GPS, GLONASS, etc.)
GPS
*Via Connected Smartphone
Monitor
Display Type

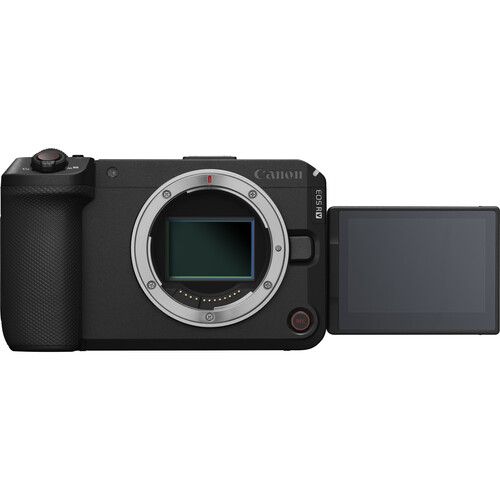

Articulating 3" Touchscreen LCD
Resolution
1,620,000 Dot
Viewfinder
Type
No Viewfinder Support
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF, Subject Tracking (Animals/People/Vehicles)
Autofocus Points
Photo, Video
1053
Autofocus Sensitivity
-6.5 to +21 EV
Flash
Built-In Flash/Light
No
Non-Shoe Flash Connection
No
