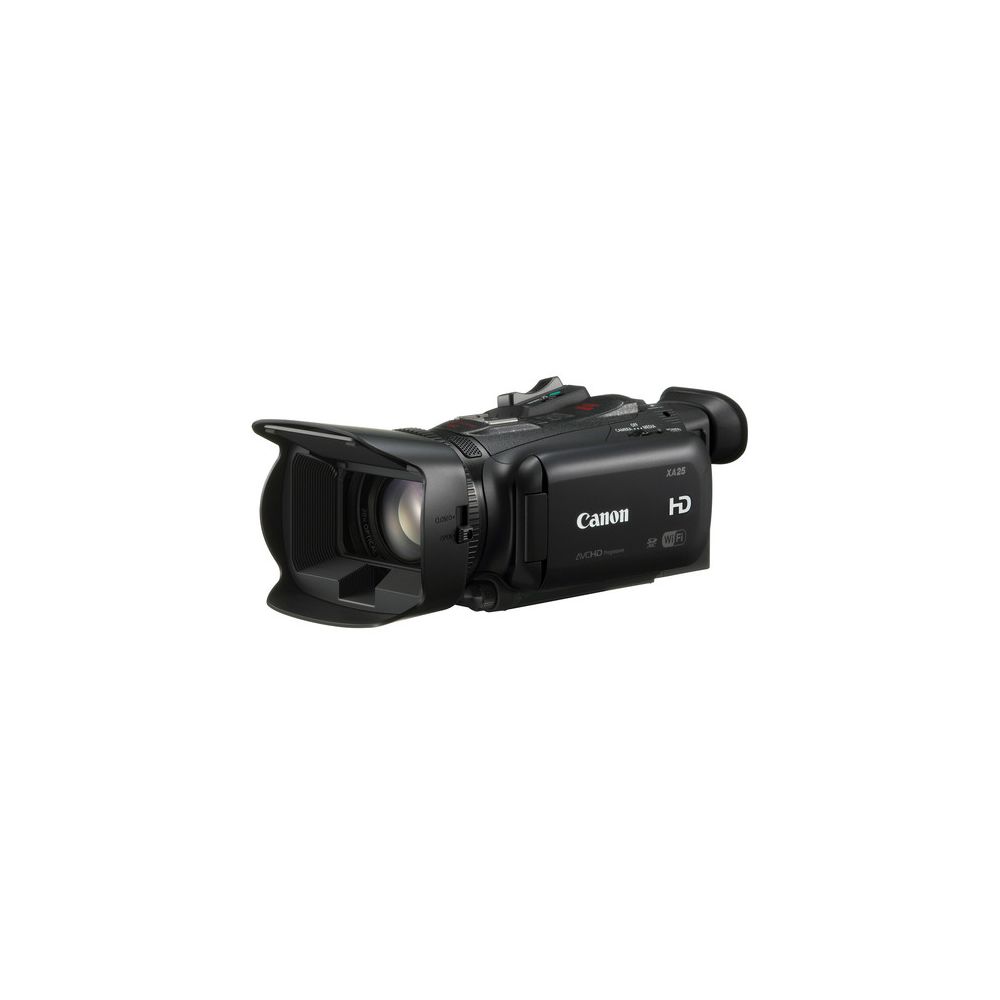

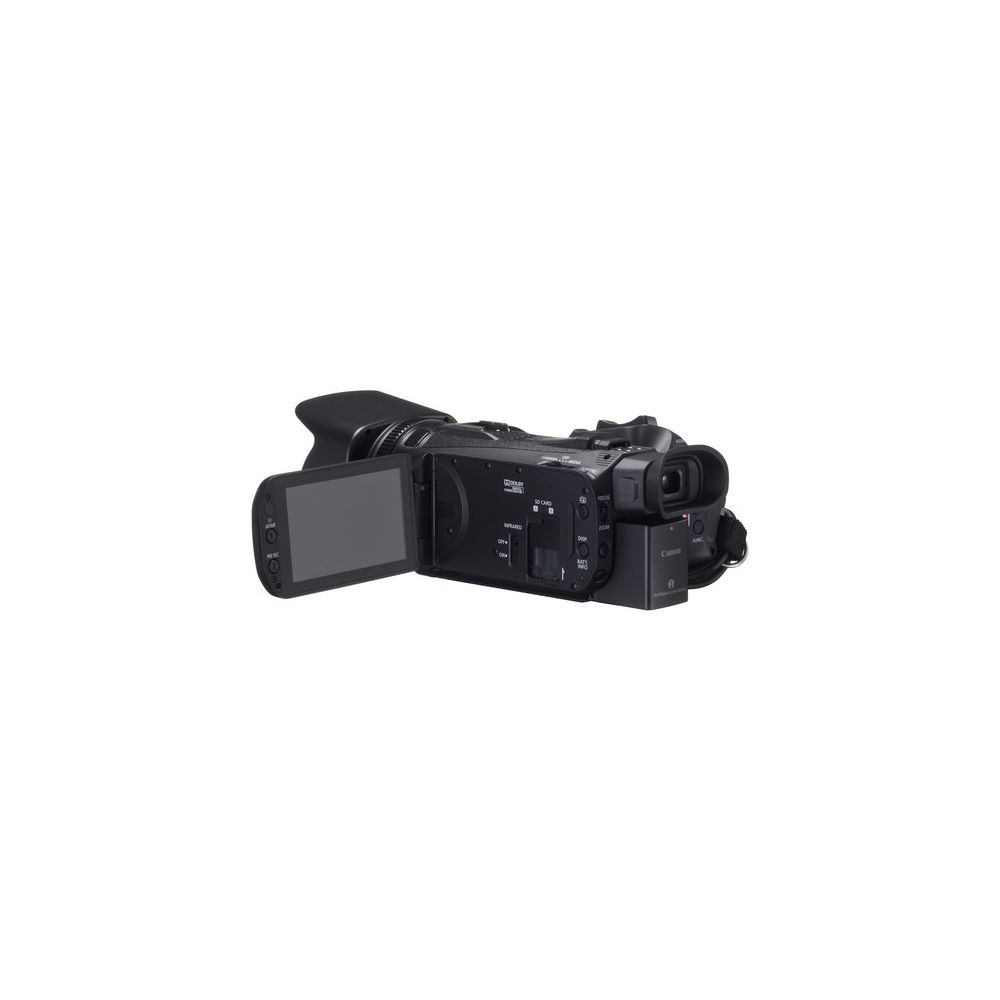

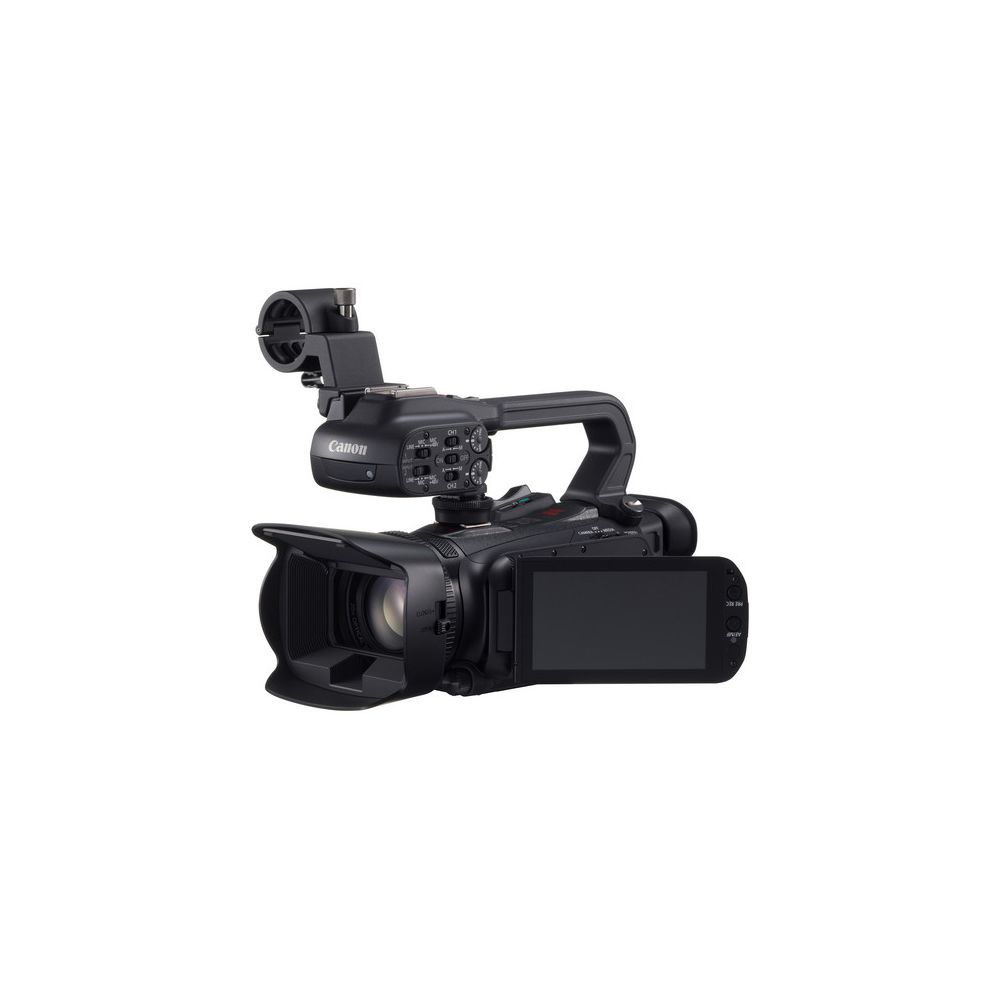

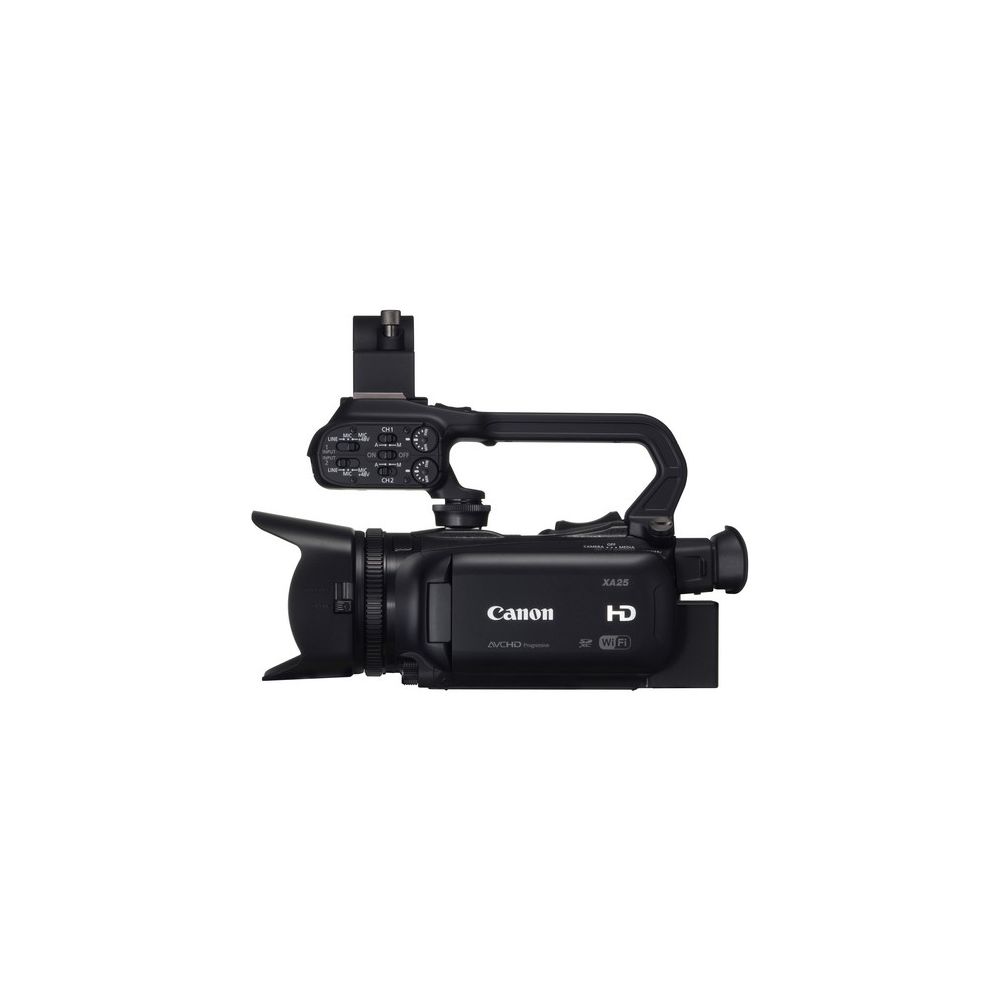

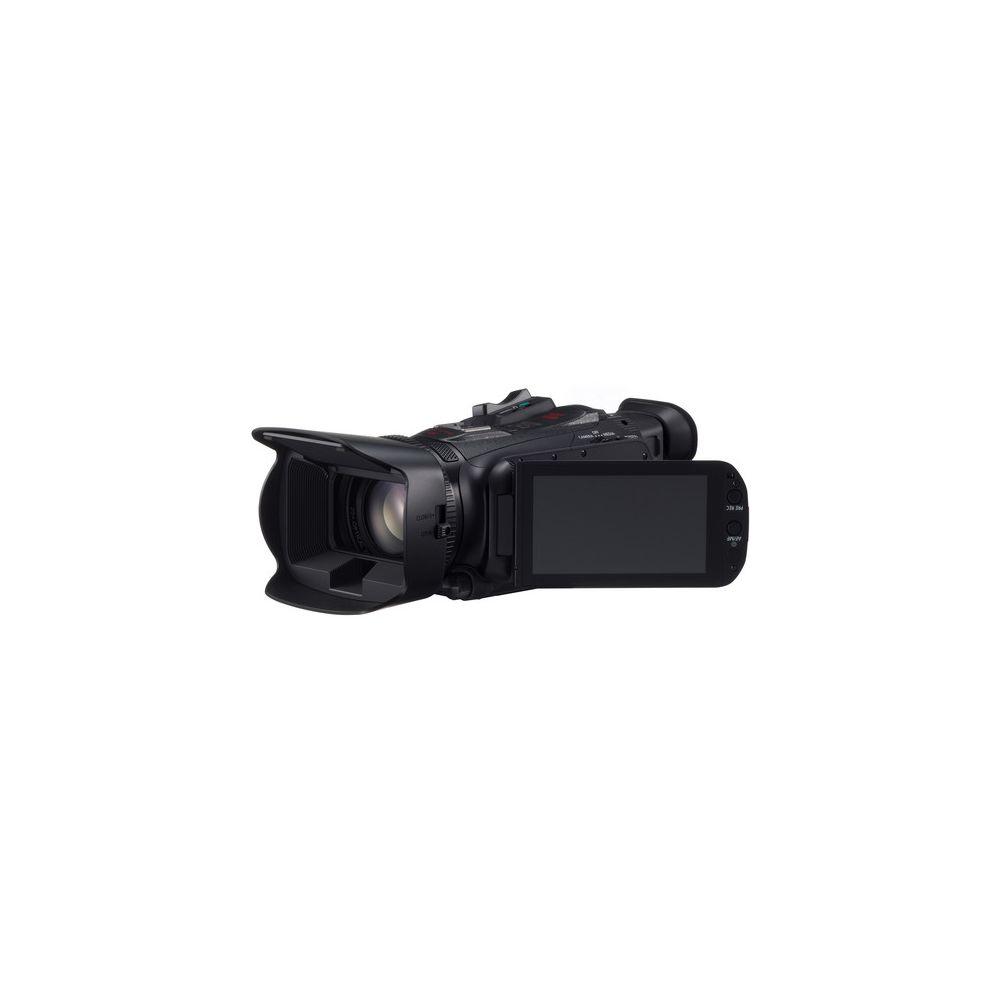

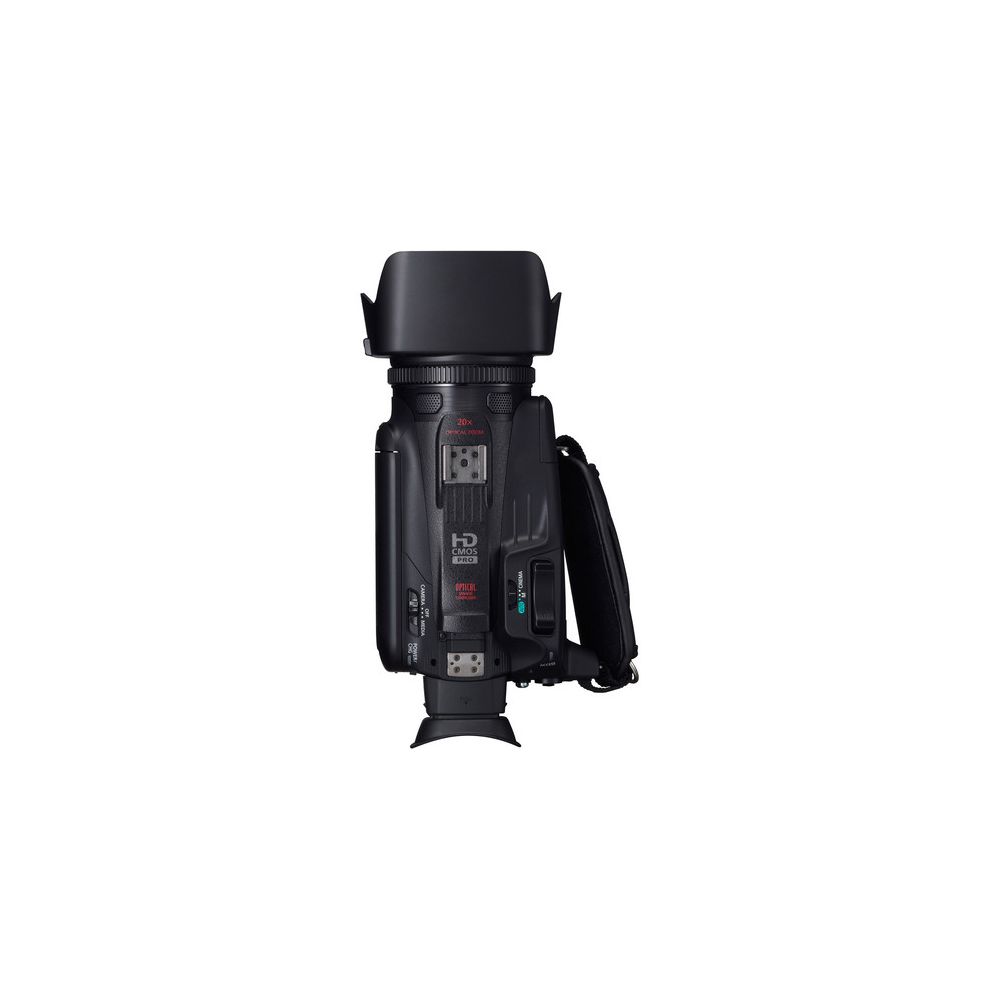

Canon XA25 Professional HD Camcorder

The Canon XA25 is a compact, high-performance professional camcorder designed specifically for "run-and-gun," ENG-style shoots with enhanced I/O connectivity. The XA25 offers a unique combination of high-precision optics, outstanding image processing, multiple recording formats, flexible connectivity and intuitive user features. But its compact design does not mean compromised functionality - this small and lightweight camcorder meets the quality and performance standards necessary for use in a wide range of applications, including news gathering, law enforcement and military, education and documentary, among others.

• Genuine Canon 20x High Definition Optical Zoom Lens

• Full HD 1920x1080 Recording Capabilities

• HD/SD-SDI Output

• Built-in Wi-Fi®Technology with FTP Transfer Capability

• Superb Image Reproduction

• 3.5-inch OLED Viewscreen with 10,000:1 Contrast Ratio and EVF

• Dual SD Card Slots, Using Readily Available, Consumable Media

• Intelligent Optical Image Stabilization System with Powered and Dynamic Modes and Auto On/Off

• Full Manual Control

• Ergonomic, Portable Design

• Two Phantom-powered XLR Audio Inputs with Manual Gain Control

• Ultra-compact Form Factor with Detachable Handle

• High Definition Peaking for Focus Assist

• Assignable Buttons for Custom Shooting

• Infrared Shooting Mode for Extreme Low-light Conditions (with built-in IR emitter and diffuser)

• Connectivity

• Optional Bluetooth Mic with Two-way Intercom-like Capability

• Advanced Display Features: Zebra, Color Bars and Test Tone

Specifications

• Standard Definition or High Definition: High Definition

• Power Supply (rated): 7.4 V DC (battery pack), 8.4 V DC (DC IN)

• Television System: NTSC

• Video Recording system: MPEG4-AVC / H.264

• Audio Recording system: Linear PCM (2ch)* / Dolby Digital (5.1ch when SM-V1 is used) * Feature supported only in the 28 Mbps/23.98 Mbps recording mode; resolution: 16 bits

• Image Sensor: 1/2.84-inch CMOS, RGB Primary Color Filter

• Total Pixels: Approx. 3.09 Megapixels (2208 x 1398)

• Effective Pixels: Approx. 2.91 Megapixels (2136 x 1362)

Lens

• Zoom Ratio: 20x Optical / 400x Digital
• Focal Length: 3.67-73.4mm (35mm equivalent: 26.8-576mm without Dynamic IS; 28.8-576mm with Dynamic IS)
• Zoom Speed: Variable speed / Constant speed (16 levels); Fast, Normal or Slow
• Max: F/Stop: f/1.8-2.8

• Focusing System: Hybrid AF (TTL-video detection system and external phase difference metering system): Instant AF, Medium AF; Normal AF (TTL-video detection system); Face Priority AF; Face Only AF; Manual Focus

• Manual Exposure: Available

• Programmed AE: Smart Auto, P, Tv, Av, M (Manual exposure), SCN (Portrait, Sports, Night, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) Cinema Mode: P, Tv, Av, M

• Max Shutter Speed: Movie: 1/2000 sec.

• Minimum Focusing Distance: 20mm (wide end) / 60cm (across the entire zooming range)

• White Balance: Auto, Set 1, Set 2, Color Temperature (2,000K to 15,000K in 100K increments), Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H

Frame Rate:

• NTSC
• AVCHD - 1080: 59.94P / 59.94i / PF29.97 / 23.98P
• MP4 - 1080: 59.94P / 29.97P / 23.98P; 720 and 360: 29.97P / 23.98P

• Minimum Illumination: 1.2 lux

• Low Light Mode: Approx. 0.1 lux (shutter speed 1/2 sec.)

• Image Stabilization: Dynamic SuperRange Optical System (Lens shift), Standard SuperRange Optical System (Lens shift), and electronic stabilization Following modes are available:

• Intelligent IS (AUTO mode), Dynamic IS, Powered IS, Macro IS, Tripod Mode

• IS Modes other than Intelligent IS: Standard IS, IS Off

• Filter Diameter: 58mm

• Viewfinder: 0.24-inch, TFT Widescreen color LCD (Equivalent to approx. 1.56 million dots; approx. 100% field of view)

• LCD Screen: 3.5-inch OLED, Capacitive Touch Panel (Approx. 1.23 million dots)

• Recording Media: 2 SD/SDHC/SDXC memory card slots

• USB Terminal: mini-B receptacle and Hi-Speed USB supported (output only)

• Video Terminal: Composite: A/V terminal 3.5mm mini-jack, output only; BNC terminal, output only

• Audio Terminal: XLR 3-pin jack (2ch), MIC/LINE switch possible (input only)

• Accessory Shoe: Cold Shoe

• HDMI Terminal: HDMI OUT mini connector

• Microphone Terminal: 3.5mm stereo mini-jack

• AV Mini Terminal/Headphone Terminal: 3.5mm 4-pole mini-jack (video/audio output only)

• Headphone Terminal: 3.5mm stereo mini-jack

• Remote Control Terminal: 2.5mm stereo mini jack (input only)

• Operating Temperature range: 23° to 113°F (-5° to 45°C) 60% relative humidity (operation) / 32° to 104°F (0° to 40°C) 85% relative humidity (performance)

• Dimensions: (W x H x D) 4.3 x 3.3 x 7.2 in. / 109 x 84 x 182mm (Not including lens hood, grip belt, microphone holder and handle unit)

• Weight: Approx. 1.7 lb. / 770g (includes grip belt)

• XA25

• Lens Hood (with Lens Barrier)

• Battery Pack BP-820

• CA-570 Compact Power Adapter

• Microphone Holder Unit / Handle Unit

• Wireless Controller WL-D89

• USB Cable IFC-300PCU

• Stereo Video Cable STV-250N

• Mini-HDMI Cable HTC-100/S

• Bundled CD ROMs:

  - PIXELA Data Import Utility Disc

  - Photo Applications / Audio Disc
