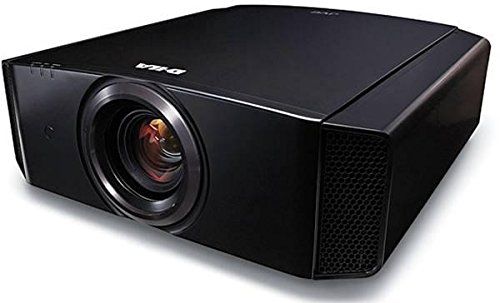

JVC Procision DLA-X570R - 3D 4K D-ILA Projector - 1800 lumens

This deal will be ending in:

SKU #: JVCDLAX570R | Manufacturer Part #: DLAX570R
Warranty Options:

Free Shipping!

Availability: In stock

Condition: New

List Price


You Save

$1,804.00 (36%)



Add to Cart

The DLA-X570R delivers stunning picture detail and perfect value thanks to JVC's exclusive 4K e-shift4 technology. Three discrete D-ILA devices produce a stable image with no flicker and high contrast ratio for peak whites and deep blacks.



Dimensions & Weight

Width17.9 in
Depth18.6 in
Height7 in
Weight34.39 lbs

Environmental Parameters

Sound Emission (Economic Mode)21 dB

Expansion / Connectivity

Interfaces2 x HDMI - 19 pin HDMI Type A 1 x serial RS-232C - 9 pin D-Sub (DB-9) (management) 1 x remote control input - mini-phone 3.5 mm 1 x network - RJ-45 (management) 1 x 3D Sync out - 3 pin mini-DIN


Device TypeD-ILA projector - HD 4K
3D CapableYes (3D glasses sold separately)


TypeZoom lens
Focus TypePowered
Lens ApertureF/3.2-4.0
Zoom TypePowered
Zoom Factor2x
Lens Shift TypePowered
Lens Shift DirectionHorizontal, vertical
Vertical Lens Shift80% / 80%
Horizontal Lens Shift34% / 34%

Manufacturer Warranty

Service & SupportLimited warranty - 2 years


Power SourceAC
Nominal VoltageAC 120/230 V (50/60 Hz)


Brightness1800 lumens
Contrast Ratio40000:1 / 400000:1 (dynamic)
Image Size59.8 in - 200 in
Throw Ratio1.4 - 2.8:1
Resolution3840 x 2160
Native Aspect Ratio16:9
Lamp TypeNSH 265 Watt
Lamp Life CycleUp to 4500 hour(s) (economic mode)
Controls & AdjustmentsKeystone correction, lens shift dial (horizontal), lens shift dial (vertical)
FeaturesHigh-bandwidth Digital Content Protection System (HDCP), Control4 Certified, clear motion drive, lens memory, Deep Black, 5 position lens memory, 3D Anamorphic Capable, 3D Parallax Adjustment, MPC (Multiple pixel control), 6 Axis color adjustment, High Dynamic Range (HDR), 4K e-shift4 technology, 3D Crosstalk Cancellation, Control4 SDDP, Motion Enhance, Manual Gamma Control, Auto HDR, DCI Color Space, Ultra Quiet Operation, Clear Black Processing, Low Latency Mode

Video Input

Video InterfacesHDMI
Video Modes480p, 576p, 1080/24p, 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 2160/24p, 2160/25p, 2160/30p, 2160/50p, 2160/60p
