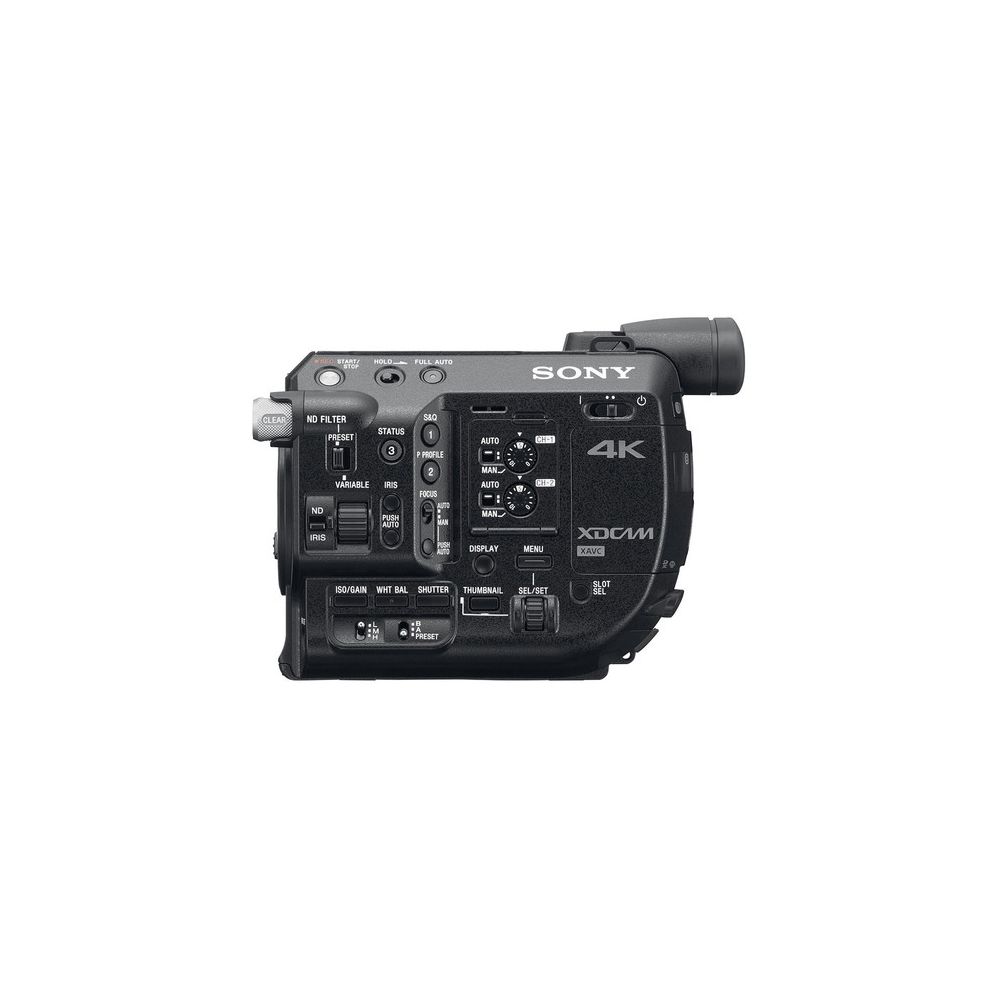

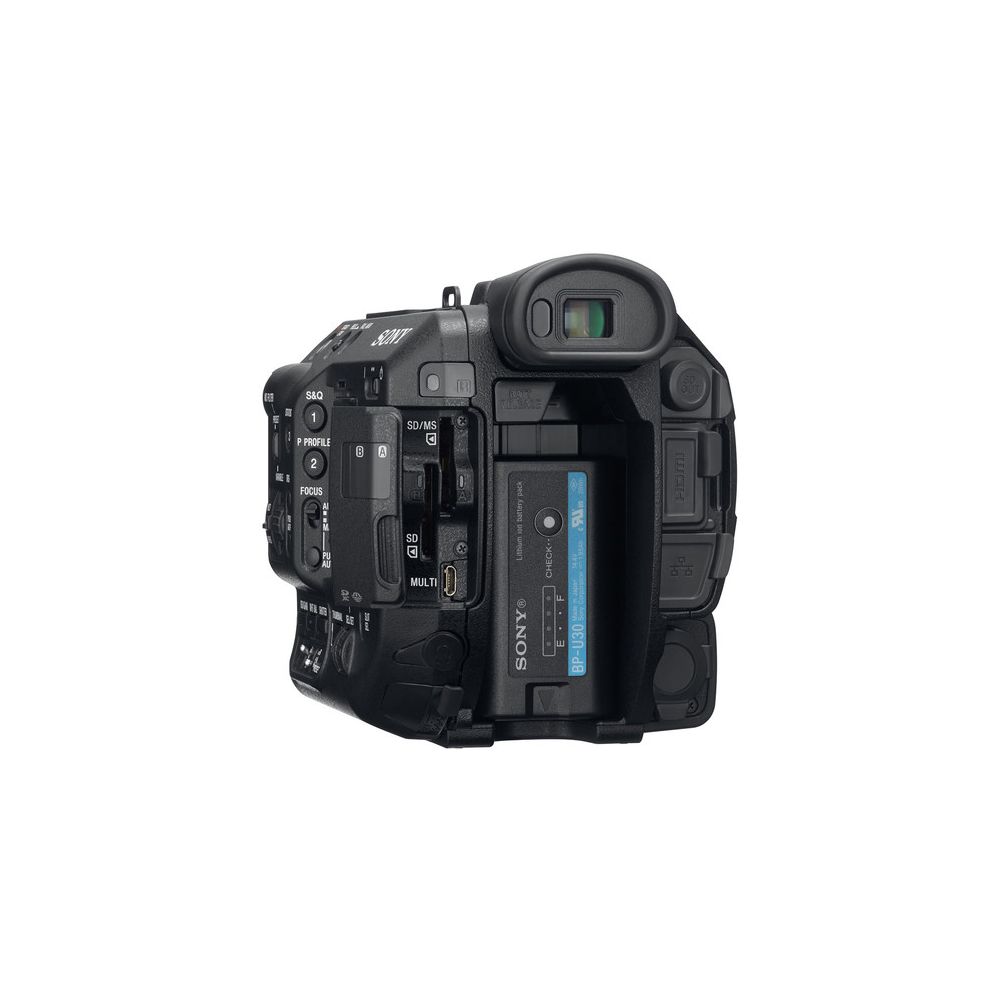

Bringing a smaller, handheld form factor to Sony's line of digital cinema cameras, the PXW-FS5 XDCAM Super 35 Camera System captures UHD video using a Super 35mm-sized sensor for cinematic imagery. Though small in size, it incorporates professional features that differentiate it from consumer and DSLR/mirrorless cameras and make it suitable for use on productions as diverse as cinéma vérité-style documentaries, reality TV, and commercial and corporate applications.
The camera's E-mount is machined from stainless steel and allows you to use E-mount lenses or accept most 35mm lenses with the use of adapters, including PL, EF, Leica, and Nikon lenses. The camera records in your choice of XAVC-L or AVCHD. It incorporates two SD media card slots that support simultaneous or relay recording. Outputs include both HDMI and SDI and Sony's proprietary Multi-Terminal. The body also incorporates an Ethernet connector, headphone jack, and XLR audio inputs. All connectors and card slots are covered to protect from dust incursion. The camera supports Wi-Fi and NFC functionality, allowing you live stream from the camera, or control it from a wireless device.
Product TypeCamcorder - 4K
Lens IncludedBody only
Widescreen Video CaptureYes
Camcorder Media TypeFlash card
Optical Sensor TypeExmor Super35 CMOS
Wireless InterfaceIEEE 802.11b/g/n, NFC (Near Field Communication)
FeaturesSelectable frame rates
Digital Video FormatH.264, AVCHD 2.0, XAVC HD, AVC
Max Video Resolution3840 x 2160
Audio Signal FormatDolby Digital AC-3 (2 channel), Linear PCM
Interfaces ProvidedHDMI, 3G HD-SDI, USB 2.0
Wireless InterfaceIEEE 802.11b/g/n, NFC (Near Field Communication)
Connectivity FeaturesRemote control via mobile devices, remote live view
Light SensitivityISO 3200
Min Illumination0.16 lux
Exposure ModesAutomatic
White BalanceCustom, presets
White Balance Presets3200K
Max Shutter Speed1/1000 sec
Min Shutter Speed1/6 sec
Gain Selection+12 dB, +18 dB, +3 dB, +6 dB, 0 dB, automatic, + 9 dB, +15 dB, +30 dB, +24 dB, +27 dB
Built-in ND Filters1/4, 1/64, 1/16
Lens Mounting TypeSony E-mount
Additional FeaturesSlow motion playback, accessories hot shoe, super slow motion recording
Viewfinder TypeOLED - OLED
Viewfinder Color SupportColor
Viewfinder Diagonal Size0.39"
Viewfinder Resolution1,440,000 pixels
Type3.5" LCD display
Resolution1,560,000 pixels
Display Form FactorRotating
Microphone Operation ModeOmni-directional
Connector Type2 x audio input ( 3 pin XLR ) 1 x HDMI output ( 19 pin HDMI Type A ) 1 x 3G HD-SDI output ( BNC ) 1 x USB 2.0 ( mini-USB Type B ) 1 x headphones ( mini-phone stereo 3.5 mm ) 1 x remote control ( sub-mini phone stereo 2.5 mm ) 1 x speakers output 1 x DC power input ( power DC jack ) 1 x Ethernet
Memory Card SlotMemory Stick card, SD card
SoftwareDrivers & Utilities
Included AccessoriesBattery charger, AC power adapter, USB cable, viewfinder, eyecup, LCD screen protector, wireless remote control, accessory shoe kit
Battery TypeSony BP-U30
Details1 x Sony BP-U30 Li-ion rechargeable battery ( included )
Battery Life DetailsVideo recording - 2.17 shots ( 4K resolution )
Memory Card SlotMemory Stick card, SD card
Supported Memory CardsMemory Stick, SD Memory Card, SDXC Memory Card, SDHC Memory Card
Width4.4 in
Depth5.1 in
Height6.8 in
Weight29.27 oz
BrandSony
Part NumberPXW-FS5
