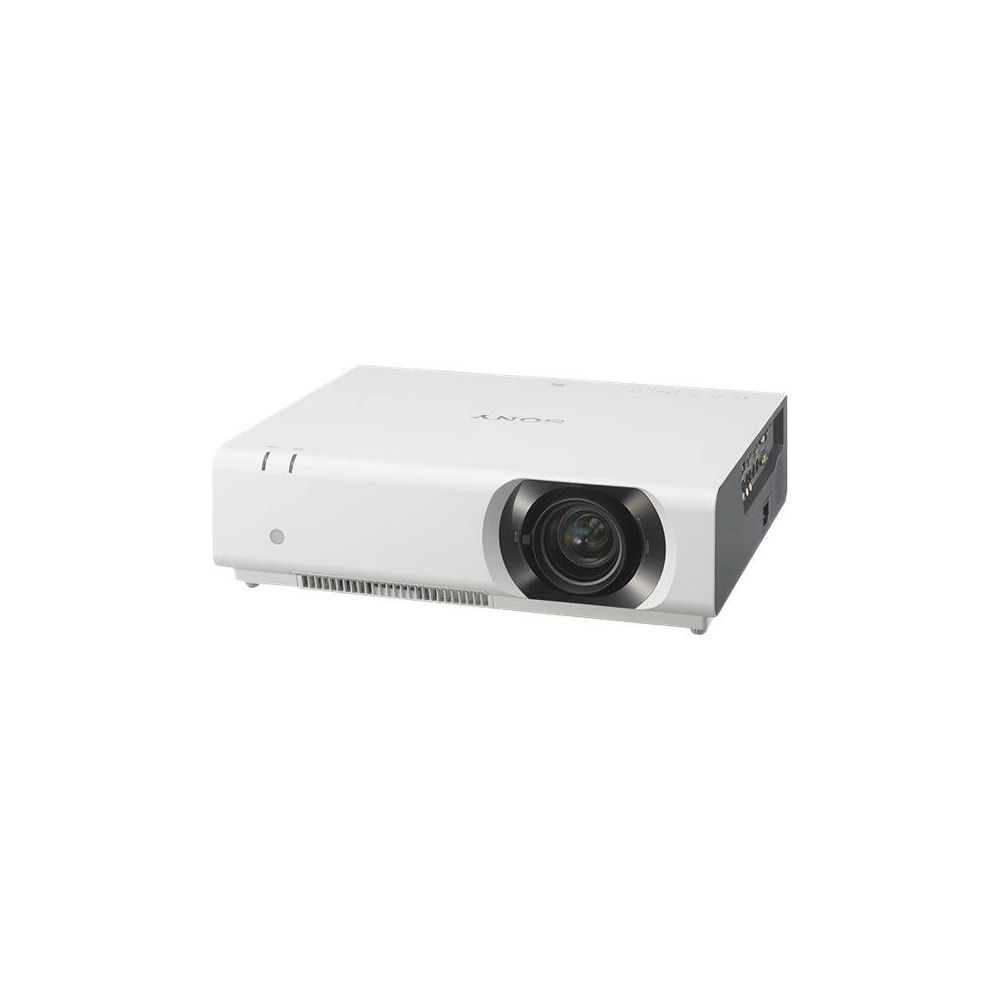

The VPLCH375 delivers an outstanding brightness of 5000 lumens and ultra high-quality images with WUXGA resolution. Sony 3LCD BrightEra panel technology provides higher picture quality, substantially brighter images, higher efficiency, consistent color stability and longer durability. It also delivers installation flexibility, environment-friendly features, and a low total cost of ownership, in a stylish design that blends into any decor. The lens shift/zoom capability and the image correction features easily allow users to fit any image onto the screen, even from an offset projection angle. The projector allows simple connectivity using an HDBaseT digital interface, multi signal transmission system, providing a single cable, cost-effective, long-distance, and high-quality digital transmission solution. Additionally, the projector is economically designed for optimum energy efficiency, thanks to its energy saving features and has all the features and functionality that you would expect from Sony, particularly in terms of installation, projection, usability and maintenance.
Device TypeLCD projector - HD 1080p
Built-in DevicesSpeaker
NetworkingEthernet
Brightness5000 lumens
Brightness (Reduced)3100 lumens
Contrast Ratio2500:1
Image Size40.2 in - 300 in
Throw Ratio1.5 - 2.2:1
ResolutionWUXGA - WUXGA (1920 x 1200)
Native Aspect RatioWidescreen
Display Format6,912,000 pixels (1920 x 1200) x 3
Max Sync Rate (V x H)92 Hz x 92 kHz
Lamp TypeUltra high-pressure mercury 280 Watt
Lamp Life Cycle2500 hour(s) / 3500 hour(s) (economic mode)
Controls & AdjustmentsKeystone correction
FeaturesEco-Mode technology, 3LCD Technology, BrightEra, Vivid Color Control
Focus TypeManual
Zoom TypeManual
Zoom Factor1.45x
Keystone Correction DirectionHorizontal, vertical
Vertical Keystone Correction-30 / +30
Horizontal Keystone Correction-20 / +20
Lens Shift TypeManual
Lens Shift DirectionHorizontal, vertical
Vertical Lens Shift5% / 5%
Horizontal Lens Shift4% / 4%
TV SystemSECAM, PAL, PAL-N, PAL-M, NTSC 4.43, NTSC 3.58
Analog Video SignalRGB, S-Video, composite video, component video
Video InterfacesVGA, HDMI, composite video, S-Video
Video Modes1080/24p, 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i
TypeIntegrated
Sound Output ModeMono
Output Power / Channel12 Watt
Speaker(s)1 x mixed channel
Interfaces1 x VGA / component video input - 15 pin HD D-Sub (HD-15) 1 x audio line-in - mini-phone stereo 3.5 mm 1 x HDMI - 19 pin HDMI Type A 1 x S-video input - 4 pin mini-DIN 1 x HDBaseT 1 x composite video input - RCA 1 x VGA output - 15 pin HD D-Sub (HD-15) 1 x audio line-out - mini-phone stereo 3.5 mm 1 x remote control - 9 pin D-Sub (DB-9) 1 x network - RJ-45 1 x USB - 4 pin USB Type A 1 x USB - 4 pin USB Type B 1 x microphone input - mini-phone stereo 3.5 mm
Included AccessoriesLens cover, remote control
Power SourceAC
Nominal VoltageAC 100/230 V ( 50/60 Hz )
Power Consumption Operational367 Watt
Power Consumption Stand by0.5 Watt
Width16 in
Depth13 in
Height4.4 in
Weight12.6 lbs
Min Operating Temperature32 °F
Max Operating Temperature104 °F
Humidity Range Operating20 - 80% (non-condensing)
BrandSony
Part NumberVPL-CH375/EU
GTIN00027242877979, 04905524970432
