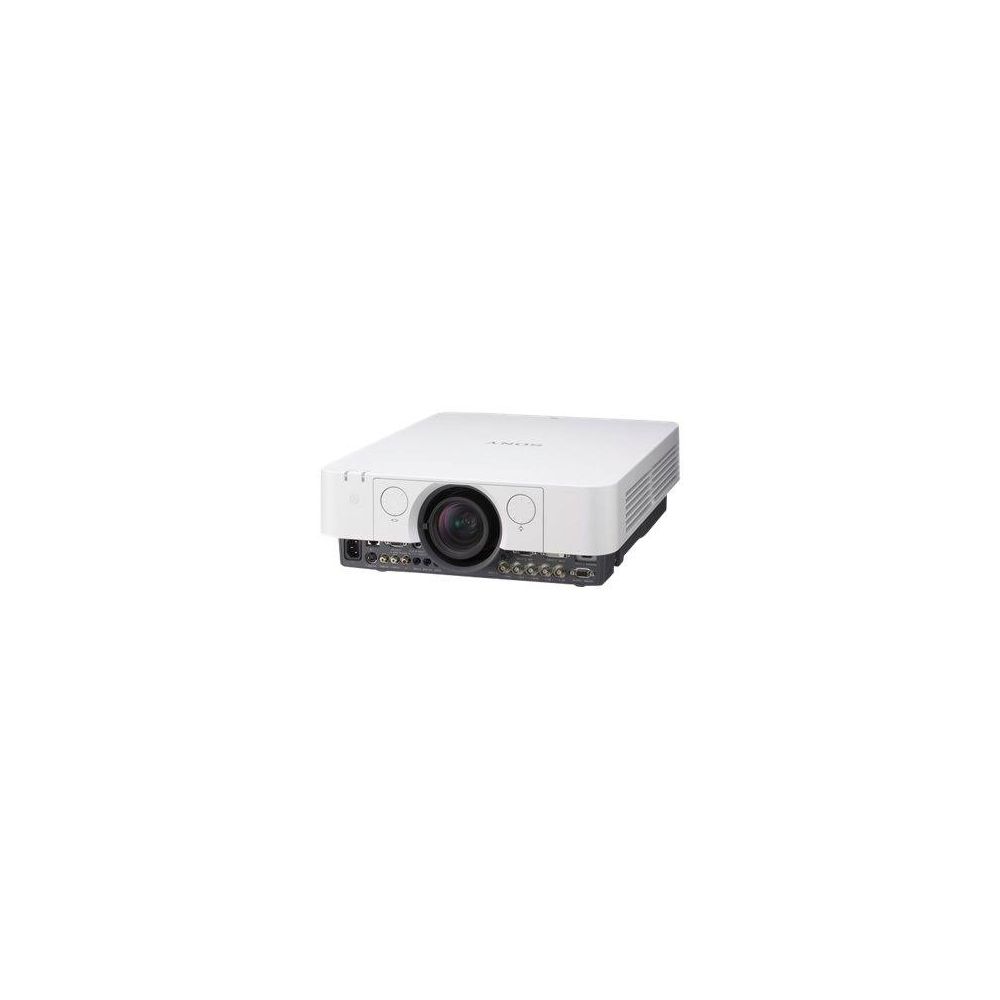

The VPLFH36 3LCD installation projector outputs high bright 5200 lumens color light output, with native WUXGA resolution suitable for displaying today's high resolution computers and 1080p video sources. Advanced integration capability includes built-in edge blending feature for creating large uniformed image using multiple projectors and advanced geometric correction. Combined with 1.6x flexible standard zoom, horizontal and vertical wide lens shift range, and a wide variety of inputs means it can perform where other projectors would struggle. Having wide range of inputs, all range crisp focus lens, and other advanced projection capabilities such as DICOM GSDF simulation gamma mode, the models are obvious projector choices for venues that demand quality and practicality.
Device TypeLCD projector - HD
Enclosure ColorWhite
Brightness5200 lumens
Brightness (Reduced)3900 lumens
Contrast Ratio2000:1
Image Size40 in - 600 in
Throw Ratio1.39 - 2.23:1
ResolutionWUXGA - WUXGA (1920 x 1200)
Native Aspect RatioWidescreen
Max Sync Rate (V x H)92 Hz x 92 kHz
Lamp TypeHigh-pressure mercury 330 Watt
Lamp Life Cycle2500 hour(s) / 3500 hour(s) (economic mode)
Controls & AdjustmentsKeystone correction, lens shift dial (horizontal), lens shift dial (vertical)
FeaturesEco-Mode technology, Closed Caption, Edge blending, High-bandwidth Digital Content Protection System (HDCP), picture by picture, 3LCD Technology, BrightEra, DICOM Simulation Mode
Focus TypeManual
Zoom TypeManual
Zoom Factor1.6x
Keystone Correction DirectionHorizontal, vertical
Vertical Keystone Correction-30 / +30
Horizontal Keystone Correction-30 / +30
Lens Shift TypeManual
Lens Shift DirectionHorizontal, vertical
Vertical Lens Shift60% / 60%
Horizontal Lens Shift32% / 32%
TV SystemSECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60, NTSC 3.58
Analog Video SignalRGB, S-Video, composite video, component video
Video InterfacesVGA, HDMI, component video, composite video, S-Video, DVI
Video Modes1080/24p, 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i
Interfaces1 x serial RS-232C - 9 pin D-Sub (DB-9) 1 x network - RJ-45 ( management ) 1 x component video / RGB input - BNC x 5 2 x audio line-in - mini-phone stereo 3.5 mm 1 x RGB input - 15 pin HD D-Sub (HD-15) 1 x DVI-D input - 24 pin digital DVI 1 x HDMI input - 19 pin HDMI Type A 1 x S-video input - 4 pin mini-DIN 1 x audio line-in - RCA x 2 1 x audio line-in - RCA x 2 1 x composite video input - RCA 1 x RGB output - 15 pin HD D-Sub (HD-15) 1 x audio line-out - mini-phone stereo 3.5 mm
Included AccessoriesRemote control
Security FeaturesSecurity lock slot (cable lock sold separately)
Power DeviceInternal
Nominal VoltageAC 120/230 V ( 50/60 Hz )
Power Consumption Operational460 Watt
Width15.3 in
Depth18.8 in
Height5.8 in
Weight17.9 lbs
BrandSony
Part NumberVPLFH36/W
GTIN00027242859685
