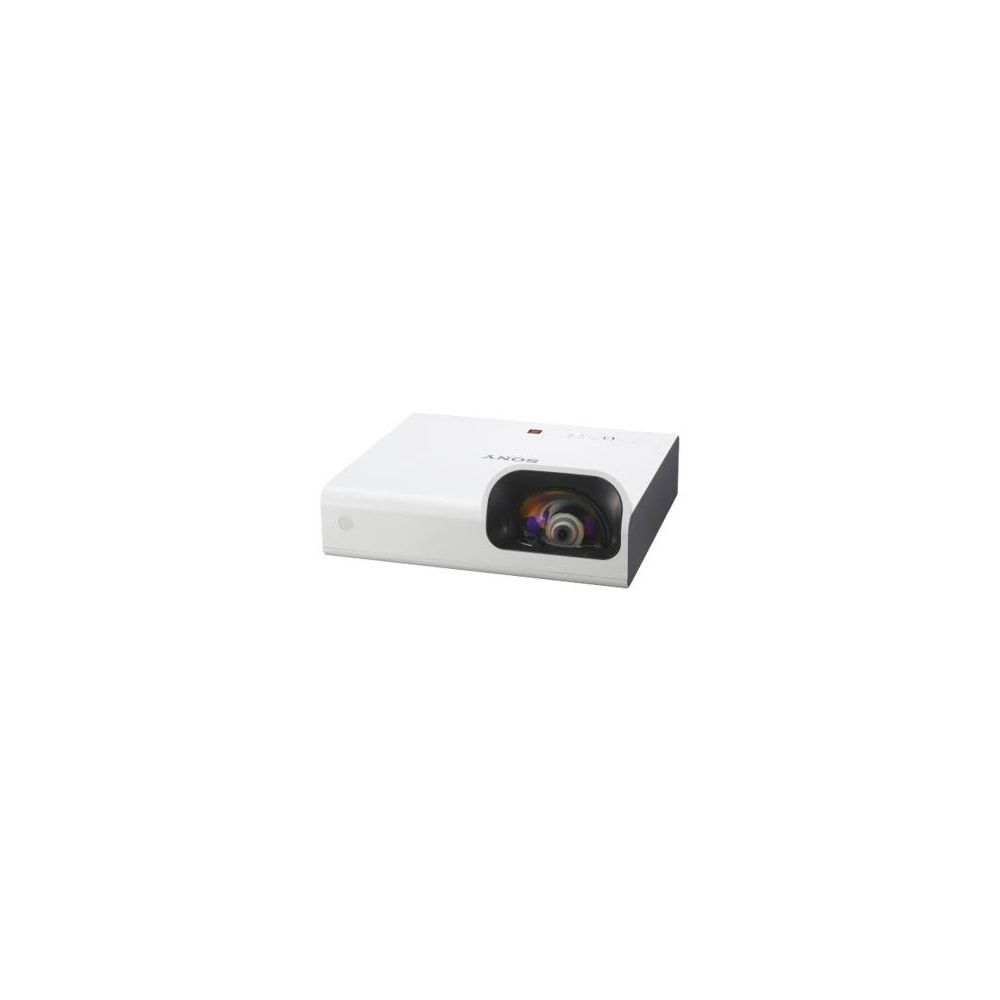

Device TypeLCD projector - HD 720p
Built-in DevicesSpeaker
Brightness (White)3000 lumens
Brightness (Color)3000 lumens
Brightness (Reduced)1700 lumens
Image Size57.1 in - 103 in
Projection Distance1.8 ft - 3.4 ft
Throw Ratio0.46:1
ResolutionWXGA - WXGA (1280 x 800) (native) / 1600 x 1200 (resized)
Native Aspect RatioWidescreen
Display Format3,072,000 pixels (1280 x 800) x 3
Max Sync Rate (V x H)93 Hz x 93 kHz
Lamp TypeUltra high-pressure mercury 210 Watt
Lamp Life Cycle4000 hour(s) / 10000 hour(s) (economic mode)
Controls & AdjustmentsKeystone correction
OSD LanguagesHungarian, Indonesian, Thai, Chinese (traditional), Chinese (simplified), Vietnamese, Farsi, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Arabic, Japanese, Korean
FeaturesHigh-bandwidth Digital Content Protection System (HDCP), 3LCD Technology, BrightEra, Wireless Ready, Vivid Color Control, USB Viewer
TypeShort-throw fixed lens
Focus TypeManual
Keystone Correction DirectionVertical
Vertical Keystone Correction-10 / +10
TV SystemSECAM, PAL, PAL-N, PAL-M, NTSC 4.43, NTSC 3.58
Analog Video SignalRGB, S-Video, composite video, component video
Video InterfacesVGA, HDMI, composite video, S-Video
Video Modes1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i
LAN and Wireless Image Transferring ProtocolsWired LAN
TypeIntegrated
Sound Output ModeMono
Output Power / Channel16 Watt
Speaker(s)1 x mixed channel
Interfaces1 x component video / RGB input - 15 pin HD D-Sub (HD-15) 1 x audio line-in - mini-phone stereo 3.5 mm 1 x RGB input - 15 pin HD D-Sub (HD-15) 1 x audio line-in - mini-phone stereo 3.5 mm 1 x HDMI input - 19 pin HDMI Type A 1 x S-video input - 4 pin mini-DIN 1 x audio line-in - RCA phono x 2 1 x composite video input - RCA 1 x RGB output - 15 pin HD D-Sub (HD-15) 1 x audio line-out - mini-phone stereo 3.5 mm 1 x serial RS-232C - 9 pin D-Sub (DB-9) ( management ) 1 x network - RJ-45 1 x USB - 4 pin USB Type A 1 x USB - 4 pin USB Type B 1 x microphone input - mini-phone stereo 3.5 mm
Included AccessoriesRemote control, lithium coin cell battery
Cables Included1 x VGA cable
Power DeviceInternal
Nominal VoltageAC 120/230 V ( 50/60 Hz )
Power Consumption Operational315 Watt
Width14.4 in
Depth12.2 in
Height5.5 in
Weight9.7 lbs
Min Operating Temperature32 °F
Max Operating Temperature104 °F
Humidity Range Operating20 - 80% (non-condensing)
BrandSony
Part NumberVPL-SW235/EU
GTIN00027242869165, 04905524938906
