Imaging
Lens Mount Micro Four Thirds
Camera Format Micro Four Thirds (2x Crop Factor)
Pixels Actual: 17.2 Megapixel
Effective: 16.1 Megapixel
Max Resolution 16.1 MP: 4608 x 3456
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Sensor Type / Size MOS, 18 x 13.5 mm
File Formats Still Images: JPEG, MPO, RAW
Movies: AVI, MOV
Audio: WAV
Bit Depth 12-bit
Dust Reduction System Yes
Memory Card Type SD
SDXC
SDHC
Image Stabilization Sensor-Shift, 5-Way
AV Recording
Video Recording Yes
Video Format 1920 x 1080p at 24, 25, 30, 50, 60 fps (77 Mbps H.264)
1280 x 720p at 24, 25, 30, 50, 60 fps (77 Mbps H.264)
1280 x 720p at 30 fps (M-JPEG)
640 x 480p at 30 fps (M-JPEG)
Video Clip Length Up to 29 Minutes
Audio Recording Built-in Mic: With Video, Stereo
Focus Control
Focus Type Auto & Manual
Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
Autofocus Points 81
Viewfinder/Display
Viewfinder Type Electronic
Viewfinder Pixel Count 2,360,000
Viewfinder Eye Point 21.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 1.3x
Diopter Adjustment -4 to +2 m
Display Screen 3" Rear Touchscreen Swivel LED (1,037,000)
Screen Coverage 100%
Exposure Control
ISO Sensitivity Auto, 200-3200 (High Sensitivity Mode: 100-25600)
Shutter 1/8000 - 60 seconds
Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
Exposure Modes Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV steps)
White Balance Modes Auto, Cloudy, Custom, Flash, Fluorescent, Incandescent, Shade, Sunlight, Underwater
Continuous Shooting Up to 10 fps at 16 MP for up to frames
Flash
Flash Modes Auto
Fill-in
Off
Red-eye Reduction
Built-in Flash No
Max Sync Speed 1 / 250 seconds
Flash Compensation -3 EV to +3 EV
External Flash Connection Hot Shoe
Performance
Self Timer 12 seconds, 2 seconds
Custom: 1-30 seconds at 0.5, 1.0, 2.0, 3.0 second intervals
Number of Shots: 1-10
Interval Recording Yes
Connectivity HDMI D (Micro)
AV / USB Multi, USB 2.0
1/8" Microphone
Wi-Fi Capable Yes
Power
Battery 1x BLN-1 Rechargeable Lithium-ion Battery Pack, 7.6 VDC, 1220 mAh
Operating/Storage Temperature Operating
14 to 104°F (-10 to 40°C)
Humidity: 30 - 90%
Physical
Dimensions (WxHxD) 4.9 x 3.3 x 1.8" / 12.4 x 8.4 x 4.6 cm
Weight 14.4 oz / .41 kg Body Only
Packaging Info
Box Dimensions (LxWxH) 9.4 x 9.1 x 3.9"

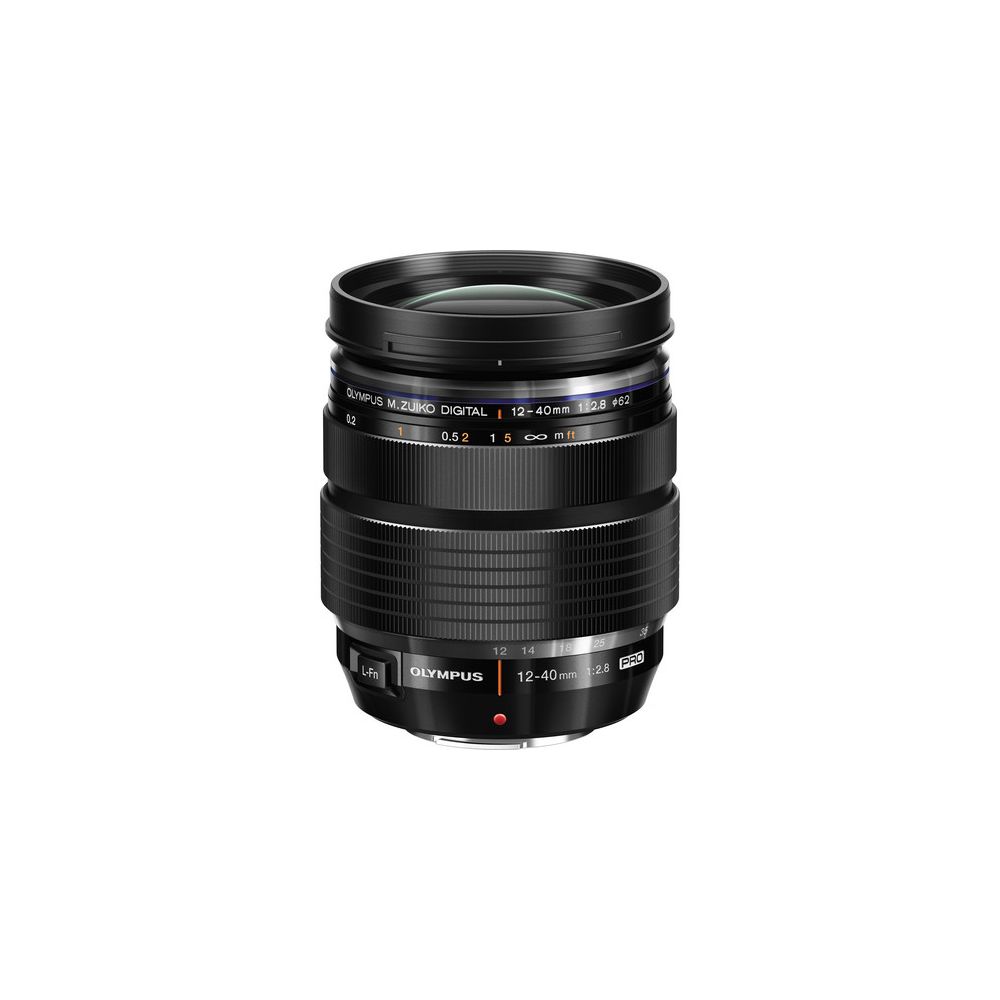

Olympus M. Zuiko Digital ED 12-40mm f/2.8 PRO Lens
Performance
Focal Length 12 - 40mm
Comparable 35mm Focal Length: 24 - 80 mm
Aperture Maximum: f/2.8
Minimum: f/22
Camera Mount Type Micro Four Thirds
Format Compatibility Micro Four Thirds
Angle of View 84° - 30°
Minimum Focus Distance 7.87" (20 cm)
Magnification 0.3x
Elements/Groups 14/9
Diaphragm Blades 7
Features
Autofocus Yes
Physical
Filter Thread Front:62 mm
Dimensions (DxL) Approx. 2.75 x 3.31" (69.9 x 84 mm)
Weight 13.47 oz (382 g)
Packaging Info
Box Dimensions (LxWxH) 7.7 x 4.7 x 3.2"
