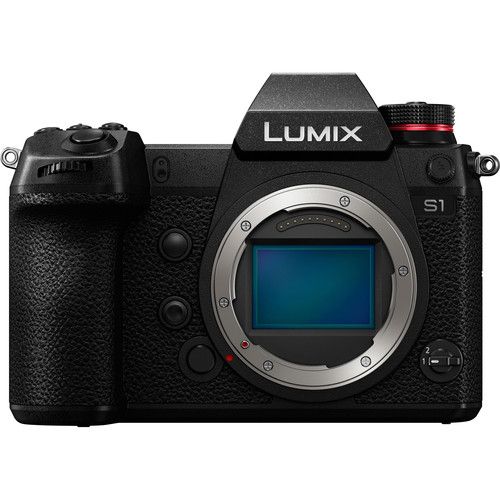

Panasonic DC-S1 Specs
Imaging
Lens Mount Leica L
Camera Format Full-Frame (1x Crop Factor)
Pixels Actual: 25.28 Megapixel
Effective: 24.2 Megapixel
Maximum Resolution 6000 x 4000
Aspect Ratio 1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Sensor Type MOS
Sensor Size 35.6 x 23.8 mm
Image File Format JPEG, Raw
Image Stabilization Sensor-Shift, 5-Axis
Exposure Control
ISO Sensitivity Auto, 100 to 51200 (Extended: 50 to 204800)
Shutter Speed Mechanical Shutter
1/8000 to 60 Seconds
0 to 30 Minutes in Bulb Mode
Electronic Front Curtain Shutter
1/2000 to 60 Seconds
0 to 30 Minutes in Bulb Mode
Electronic Shutter
1/8000 to 60 Seconds
1/16000 to 1/25 Second in Movie Mode
Bulb Mode
Metering Method Center-Weighted Average, Highlight Weighted, Multiple, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -5 to +5 EV (1/3 EV Steps)
Metering Range 0 to 18 EV
White Balance Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set
Continuous Shooting Up to 9 fps at 24 MP for up to 90 Frames (Raw) / 999 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay
Video
Recording Modes 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.976p/29.97p
MP4/H.264
UHD 4K (3840 x 2160) at 59.94p [150 Mb/s]
UHD 4K (3840 x 2160) at 23.976p/29.97p [100 Mb/s]
Full HD (1920 x 1080) at 59.94p [28 Mb/s]
Full HD (1920 x 1080) at 29.97p [20 Mb/s]
MP4/H.265
UHD 4K (3840 x 2160) at 23.976p/29.97p [72 Mb/s]
AVCHD
Full HD (1920 x 1080) at 59.94p [28 Mb/s]
Full HD (1920 x 1080) at 29.97p [24 Mb/s]
Full HD (1920 x 1080) at 59.94i [17 Mb/s]
Full HD (1920 x 1080) at 59.94i [24 Mb/s]
External Recording Modes 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 59.94p
Video Encoding NTSC
Audio Recording Built-In Microphone (Stereo)
External Microphone Input
Audio File Format AAC, Dolby Digital 2ch, Linear PCM
Focus
Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
Autofocus Points Contrast Detection: 225
Autofocus Sensitivity -6 to +18 EV
Viewfinder and Monitor
Viewfinder Type Electronic
Viewfinder Resolution 5,760,000 Dot
Viewfinder Eye Point 21 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.78x
Diopter Adjustment -4 to +2
Monitor Size 3.2"
Monitor Resolution 2,100,000 Dot
Monitor Type Tilting Touchscreen LCD
Flash
Built-In Flash No
Flash Modes Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction
Maximum Sync Speed 1/320 Second
Flash Compensation -3 to +3 EV (1/3 EV Steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe, PC Terminal
Interface
Memory Card Slot Slot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFexpress Type B / XQD
Connectivity 3.5mm Headphone, 3.5mm Microphone, 2.5mm Sub-Mini, HDMI A (Full Size), PC Sync Socket, USB Type-C (USB 3.0)
Wireless Wi-Fi
Bluetooth
GPS No
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Operating Humidity 10 to 80%
